PlaySteel MAX and FIT Play Events

Choose the Play Events that meet your needs.

Snaky Loop Challenge-Left

Description

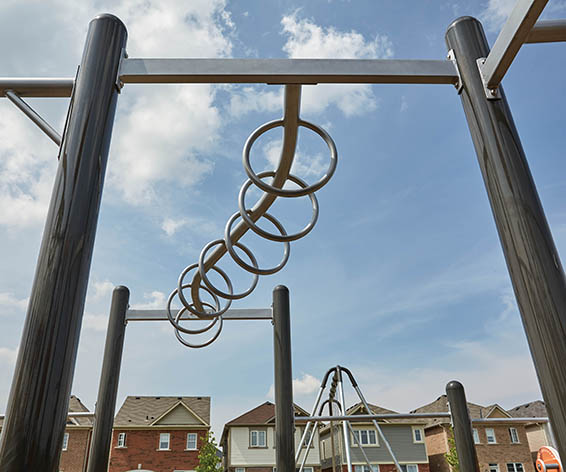

A serpentine beam with stationary loops that curves to the left. Available freestanding or for 6″ (152mm) through 2′ (610mm) decks.

Specifications

Snaky Trapeze Challenge is a mechanical assembly of ring beam, rings, support bar, and brackets. Ring beam is a welded assembly of 2.375” (60mm) O.D. x 10 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 0.1875” x 1.25” (5mm x 32mm) zinc-plated hot-rolled mild flat steel, and 0.25” x 2” (6mm x 51mm) zinc-plated hot-rolled mild flat steel. Rings are a welded assembly of 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 1” (25mm) schedule 40 black steel pipe, and 1.03” O.D. x 0.51” I.D. (26mm x 13mm) nylatron bushing. Rings are suspended from a lubricated bearing with mechanical hardware. Support bar is a welded assembly of 1.5” x 3” (38mm x 76mm) rectangular x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube, and 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Brackets are 10 gauge (3mm) satin-coated steel sheet. Ring beam, rings, support bar, and brackets are powder-coat painted.

Age Range:

  • 2 to 5 Years:  Maximum Height of Overhead 1.5 m (59.06 in)
  • 5 to 12 Years:  Maximum Height of Overhead 2.1 m (82.68 in)

Deck Heights:

  • 0, 1ft (0, 0.3m) for 2 to 5 years
  • 0, 1, 2ft (0, 0.3, 0.61m) for 5 to 12 years

Playground Standards:

Component Colors:

  • Color is a personal choice and an essential part in good playground design. Our playground consultants will help you make the best choices. See our Color Combinations or Color Options pages for more information.
